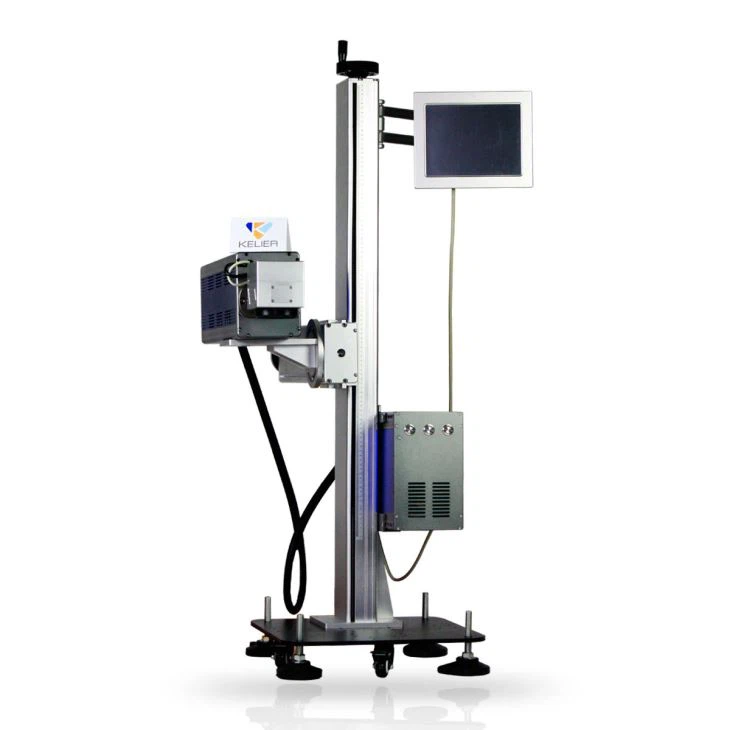

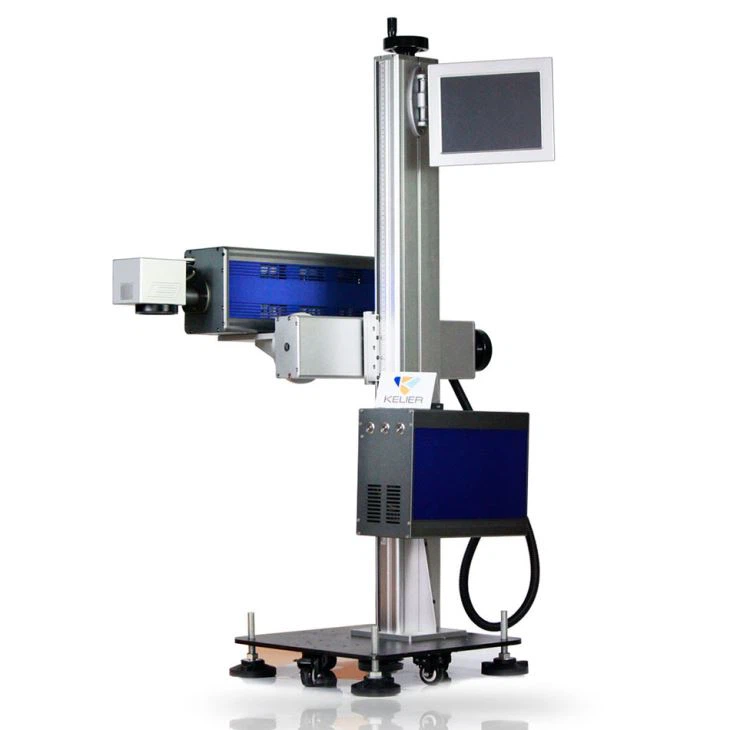

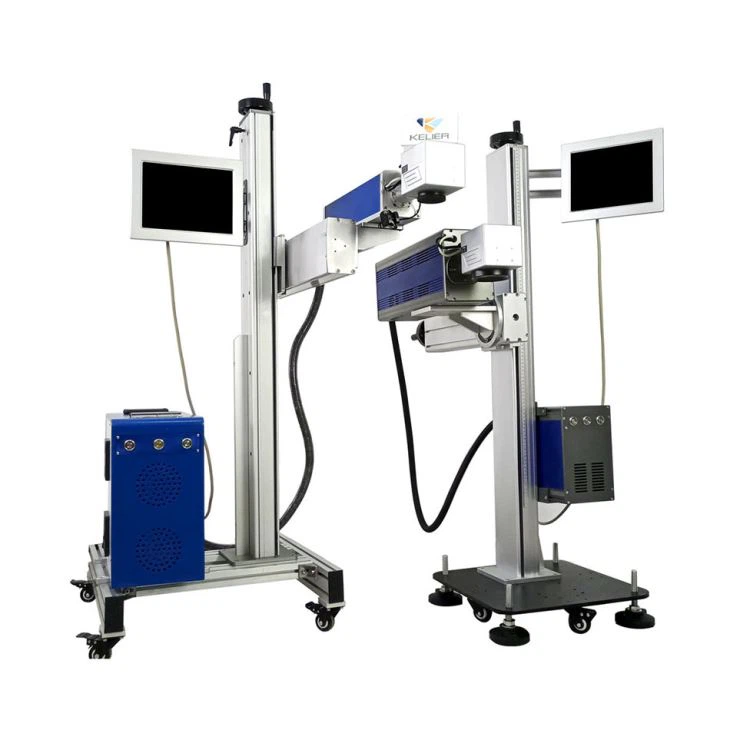

CO2 Fly Online Laser Coding Machine
| Brand: KELIER | Model: FC20/30/50F | Origin: Mainland China |
| Provinces: Sichuan | City: Chengdu | Power: 20W/30W/50W |
| DCarving speed：9000mm/s | Voltage: 110V-240V | Weight: Packing Weigth:120kg |
All products, provide 3 years of quality assurance service, any doubt, through after-sales service to provide solutions | ||
CO2 Fly Laser Marking Machines
KELIER offers two main types of laser marking machines, CO2 and fiber. Other than the laser frequency, the main uses for CO2 laser marking and fiber laser marking are: CO2 lasers (FCG,FCF models), typically used for beverage bottles including PET, PVC, and also for marking packaging card and clear glass.
Fiber laser coders (FCF models) capable of marking products on faster production lines or with more complex coding or substrate requirements such as metals like steel and aluminium, and medication blister pack printing. Sample Marking KELIER can test which laser coder works best for your requirements
We highly recommend sample marking to identify the most suitable laser marking machine for your requirements, use the form below to arrange yours or for any questions you may have about our laser marking equipment.
1.Laser Technology Refined
Application of the system can fully or partially replace the traditional inkjet coding, especially for the new material which inkjet cannot coding and remain permanent traceable code.
2.Versatile Laser Machines
With this OTF laser coding technology, users can resolve many challenges for new material and special requirements. Trying the extreme cycle time that laser technology can reach helps the equipment owner significantly leverage capital investment into good revenue and margin generation.
3.Laser Marking Systems
Our on-the-fly laser marking technology can be integrated into existing production lines for conveyor based, high-speed marking of date codes and serial numbers. Full integration services and options are available.
| KELIER Industrial Laser Marker parameters | |
| Optional Model | FG20F/FG30F/FG50F |
| Laser power | 20W30W50W(optional) |
| Laser source | China Max or Raycus German IPG fiber laser |
| Laser wavelength | 1064 nm |
| Beam quality | M2 ＜ 1.4 |
| Modulation frequency | 20kHz~110kHz |
| Marking range | 30mm x 30mm - 300mm x 300mm can be optional |
| Carving speed | 0-12000 mm/s(Adjustable) |
| Carving depth | 0.01~0.4mm(10W) ; ≤1.0mm(50W) according to material |
| Focusing mode | Support for automation or manual |
| Marking speed | 1500-2000characters/Min |
| Minimum line width | 0.002 mm |
| Minimum characters | 0.15 mm |
| Repeatability accuracy | ±0.002 mm |
| Cooling method | Air Cooling |
| Use environment | IP4 Clean, dustless or less dusty |
| Laser type | Pulse or continuous |
| control software | Authorization EZCAD marking control software |
| Graphic format supported | bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. |
| Laser indicator | Double Red dot pointer |
| Operating system | Win98/Win2000/WinXP/win7 （64、32bit）win8/win10 |
| working temperature | 0-35 ℃,90% or humidity |
| Power consumption | ≤ 550 W |
| Electricity demand | AC110V-240V±10%，50 HZ/60HZ |
| This product contains computers. The following is the configuration list of the dedicated computers. | |
| Computer configuration parameters | |
| CPU | Intel G630X2/I3 540 |
| Memory | ADATA 4G/8G DDR3L 1600 |
| BIOS | AMI EFI BIOS |
| Super I/O | Winbond W83627DHG-P / HG41/HG55 |
| Ethernet | 1x LAN Intel I211(IO） |
| GPU | Intel HD Graphics |
| Display interface | 1x HDMI:1920×1200@60Hz |
| Hard disk | 60G/120G/500G |
| USB interface | 4xUSB |
| serial port | 1x RS232,COM1,RS422、RS485 |
| operating system | Windows 7 32bit；Can support/Windows 8/Windows 10/Linux |
| working temperature | 0℃～ 60℃ |
| Storage temperature | -40℃～ 85℃ |
| humidity | 5% ～ 95% Relative humidity, no condensation |
Laser Materials With wide range of laser sources configuration options, the system is adaptable all the industrial laser can process organic and non-organic material, including metal, glass, ceramic, graphite, plastics, rubber, fiber and composite. If you’re not sure if your material will mark, send it in for a free material testing study by our applications experts.
Major users are packaging system integrator or manufacturers in pharmaceutical container, foodstuff, beverage, tobacco and alcohol industry, and other mass production manufacturer with wire, tube, pipe excursion production line, electronic components and electric device with conveyor transit line.
Applicable Industries:
Precision instruments, computer keyboards, auto parts, plumbing parts, communications equipment, medical equipment , bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances, watches, molds, gaskets and Seals, data matrix, jewelry, cell phone keyboard, buckle, kitchenware, knives, cooker, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, signs molds, elevator equipment, wire and cable , Industrial bearings, building materials, hotel kitchen, military, pipelines.
Tobacco industry, bio-pharmaceutical industry, liquor industry, food packaging, beverage, health care products, plastic buttons, bathing supplies, business cards, Clothing accessories, cosmetics packaging, car decoration, wood, logos, characters, serial number, bar code, PET, ABS, pipeline, advertising logo and other non-metallic industries.
Net weight: 95kg
Total Weight of Wooden Box Packaging:Size 900*800*1060mm, weight:120 kg
Inside: Shockproof multilayer foam packaging high-end, safe, easy to carry and store; support customized packing.
The outer cardboard packaging, the middle use of shockproof foam protection,waterproof, moisture-proof, shockproof.
| Packing list | ||
| It is composed of fiber laser, high-speed scanning mirror, control software, computer, switching power supply control chip set and precision Z-axis elevator. | ||
| Packaging size/weight(mm):850(L)*680(W)*400(D) / 60KG | ||
| Part name | Brand origin | Quantity |
| Fiber laser | Raycus/Max/Ipg | 1 sets |
| High speed scanning galvanometer | Beijing Jin Haichuang | 1 sets |
| Focusing lens | Singapore wavelength | 1 sets |
| Marking software | EZCAD | 1 sets |
| Indicator locator | Xi'an sapling | 1 sets |
| Power switch | Taiwan Meanwell | 1 sets |
| Laser frame | Self-control | 1 sets |
| Print foot | Customized | 1 sets |
| Equipment switch | Shanghai Jia Jia | 1 sets |
| Control computer(Order required ) | desktop computer | 1 sets |
| Instructions | Video, text and pictures | 1 sets |
1. Where do you sell your products?
Q: Southeast Asia, Central Asia, South Africa, West Africa, North Africa, North America, South America, Europe
2. Environmental protection of cartridges?
Q: Ink is very environmentally friendly and tested. We have MSD test reports to provide.
3. What is the monthly shipment volume of your company?
Q: About 3000 sets.
4. What if the goods are damaged or detained in transit?
Q: First of all, our packing is very safe. The goods are insured. Damage can be settled by the forwarding company. They are all through safe and regular channels. There is no need to worry about being detained.
5. Is the machine complex?
Q: Our machine is simple and easy to operate. Video teaching and documentation are available.
6. Does your company have a design and development team?
Q: We have our own independent R&D and design team, which can be customized and improved according to actual customer requirements.
7. If you customize the machine, what's the starting order?
Q: We provide all kinds of customized machines, starting from the quantitative discussion according to the actual situation.
8. Do you have a manual or instructional video on how to use the machine?
Q: Yes, in the free USB we sent you. We have a YouTube page where you can view instructional videos.
9. How many times can a cartridge be used in my product?
Q: 42 ml cartridge can print 2 mm 80 000 times, 72 ml cartridge CNA can print 2 mm 136 000 times. Based on this, you can calculate the number of times you can print on the product.
10. Does this have an English system?
Q: Yes, our H3 and H3X machines have an English system. Our H6 and H7 machines have English/Italian/Korean/Russian/Spanish/Turkish/Arabic system languages.
11. Does your machine have an English keyboard?
Q: Yes, our H3 and H3X machines have Arabic/Russian/English keyboards. Our H6 and H7 machines have Arabic/Chinese/English/Korean keyboards. You can edit these languages directly on the machine. If you want to print more languages, you can edit them as pictures, and then enter and print them.
