Jewelry Laser Marking Machine
Chengdu Kelier Electronic Co., Ltd. is one of the leading manufacturers and suppliers of jewelry laser marking machine in China. Welcome to buy high quality jewelry laser marking machine at competitive price from our factory. Also, customized service is available.
| Brand: KELIER | Model: FG10/20HB3 | Origin: Mainland China |
| Provinces: Sichuan | City: Chengdu | Power: 10W/20W |
| DCarving speed：8000mm/s | Voltage: 110V-240V | Weight: 10kg/packing weigth:16kg |
All products, provide 3 years of quality assurance service, any doubt, through after-sales service to provide solutions | ||

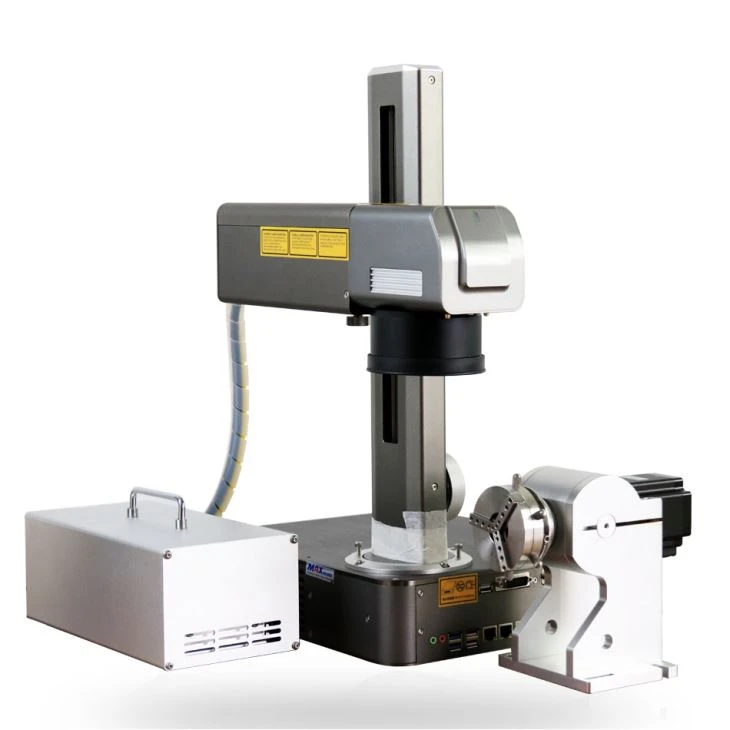

Description for KELIER metal portable mini fiber laser marking machine
Product features 1. The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
2. Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.
3. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.
4. Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.
5. High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.
6. KELIER FG20/30HB3 fiber laser marking machine is portable. Power box and laser source can be separated. Easy transport and can be displayed separately according to user’s site space situation.
Characteristics of metal portable mini fiber laser marking machine
20W Raycus Portable Handheld Fiber Laser Marking Machine for Metal Steel Aluminum Brass Desktop portable design, can not only be fixed for the desktop marking, but also removable for hand held marking.It`s small,light, convenient to carry, and the marking speed is twice than the same type of laser.It adopts imported laser, so the core component life can reach more than 100,000 hours, also no subsequent consumables.
| Portable Laser Marker Product parameters | ||
| Optional Model | FG10HB3 | FG20HB3 |
| Laser power | 9.5±0.5 W | 19.5±0.5 W |
| Laser source | Max or Raycus | |
| Laser wavelength | 1064 nm | |
| Beam quality | M2 ＜ 1.4 | |
| Modulation frequency | 20-50 khz | 30-60 khz |
| Marking range | 100/200 mm | |
| Carving speed | 0-8000 mm/s | |
| Focusing mode | Support for automation or manual | |
| Marking speed | 600-1000characters/Min | |
| Minimum line width | 0.02 mm | |
| Minimum characters | 0.15 mm | |
| Repeatability accuracy | ±0.002 mm | |
| Cooling method | Air Cooling | |
| Use environment | IP4 Clean, dustless or less dusty | |
| control software | MAXCAD | |
| Laser indicator | Double Red dot pointer | |
| working temperature | 10-35 ℃ | |
| Power consumption of the whole machine | ≤ 100 W | ≤ 160 W |
| Electricity demand | AC220V±10%，50 HZ | |
| Computer configuration parameters | ||
| CPU | Intel J1900 Processors | |
| Memory | ADATA 4G DDR3L 1600 | |
| BIOS | AMI EFI BIOS | |
| Super I/O | Winbond W83627DHG-P | |
| Ethernet | 1x LAN Intel I211(IO） | |
| GPU | Intel HD Graphics | |
| Display interface | 1x HDMI:1920×1200@60Hz | |
| Hard disk | 32G | |
| USB interface | 4xUSB | |
| serial port | 1x RS232,COM1,RS422、RS485 | |
| operating system | Windows 7 32bit；Can support/Windows 8/Windows 10/Linux | |
| working temperature | 0℃～ 60℃ | |
| Storage temperature | -40℃～ 85℃ | |
| humidity | 5% ～ 95% Relative humidity, no condensation | |
Product Applications
Application Handheld Portable Fiber Laser Engraving Machine is applicated in Electronic Components ,Apparatus And Meter,Instrument,Hardware Tools,Automobile Parts,Mechanical Parts,Daily Necessities,Jewelry Rings ,Food, drinking packing,precision identification and printing of high-end products, such as precision instruments, gift accessories, medical instruments, etc.Typical application such as plastic, thermal insulation strip laser flight marking, metal plate automatic and down materials laser marking, box body online laser marking machine, etc.
Applied Materials:
1. All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition
2. Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material
Outside: Cardboard box packing 67*37*31cm, 16 kg
Inside: Shockproof multilayer foam packaging high-end, safe, easy to carry and store; support customized packing.
The outer cardboard packaging, the middle use of shockproof foam protection,waterproof, moisture-proof, shockproof.
| Packing list | |||
| Title | Size(cm) | G.w(kg) | Remarks |
| Laser packaging | 67*37*31 | 16 | Cardboard box packing |
| Rotating platform packaging | 30*23*17 | 6.5 | Cardboard box packing |
| it is composed of fiber laser, high-speed scanning mirror, control software, computer, switching power supply control chip set and precision Z-axis elevator. | |||
| Combination packaging | Items | Pics | |
| FG20/10Hb3 Laser machine | 1 | Standard packing | |
| Data line | 1 | ||
| Charger | 1 | ||
| Foot switch | 1 | ||
| Screw | 12 | ||
1,How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2,How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
3,Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4,How is the packing?
Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel Belt Save space as much as possible for container loading
5: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.
6: When I got this machine, but I don’t know how to use it. What should I do?
We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
7: If some problems happen to this machine, what should I do?
We provide three years machine warranty. During the three-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
8: What’s consumables of laser marking machine?
A: It does not have consumable. It’s very economical and cost effective.
9: What’s package, will it protect the products?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
